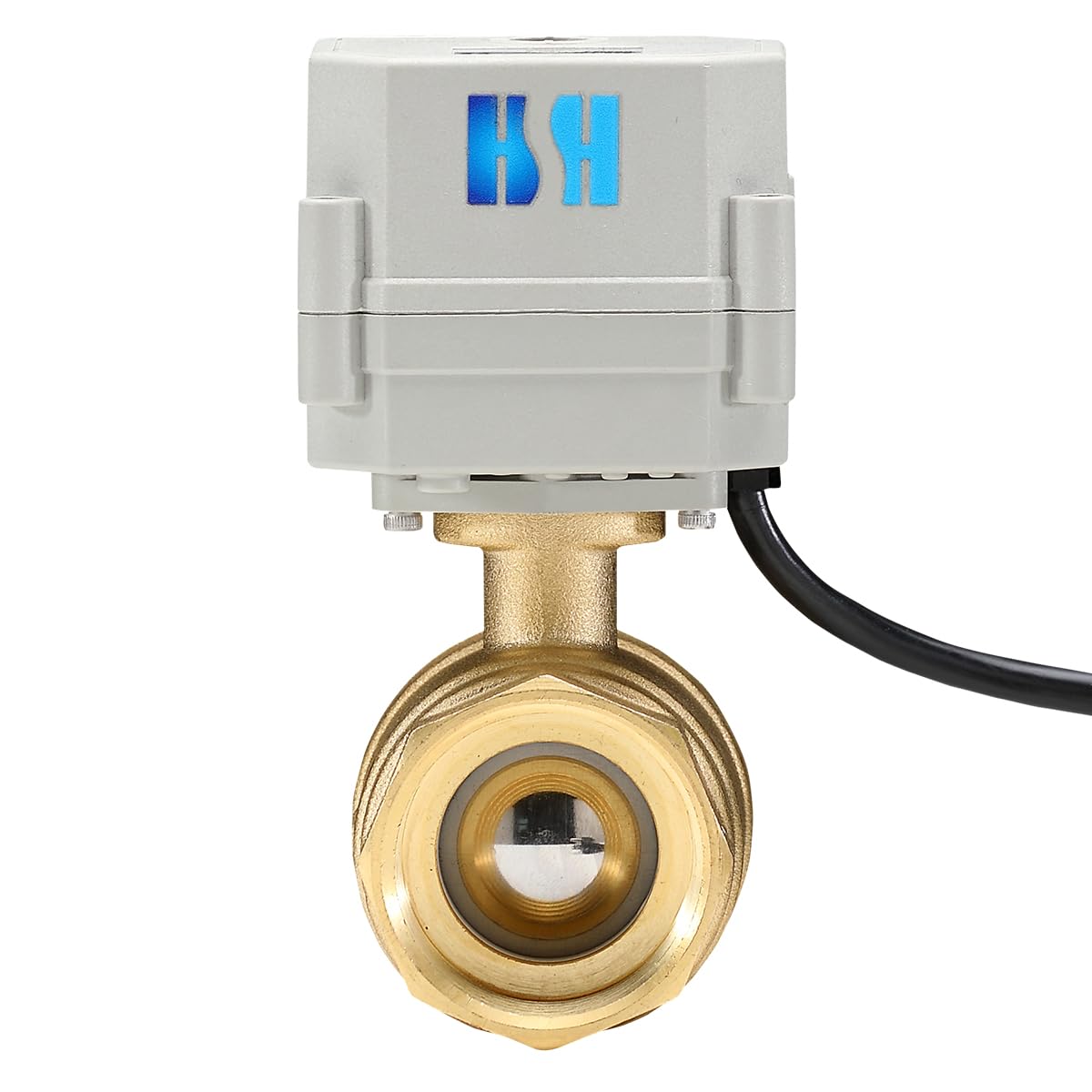

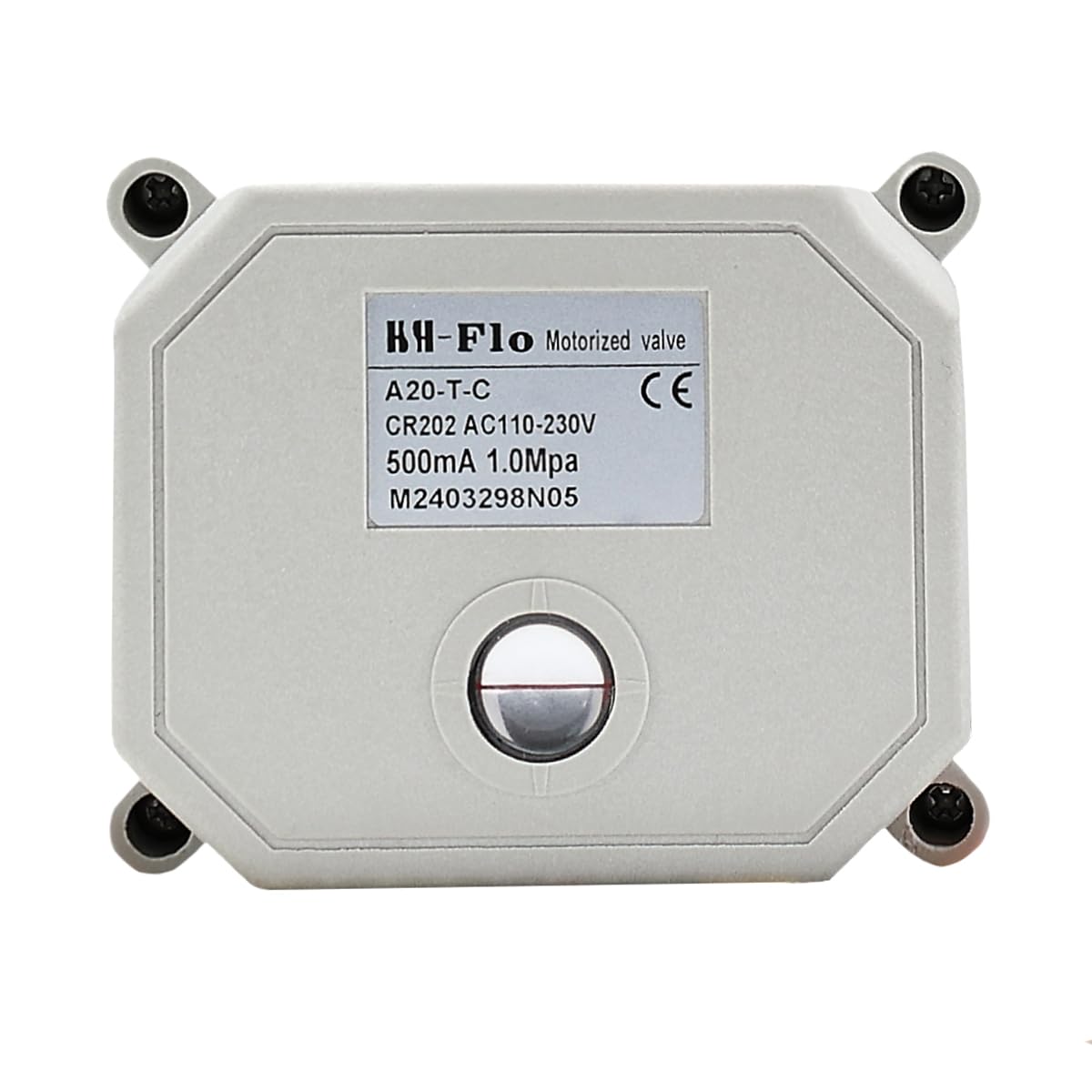

Product Detail Valve Dimension 1-1/4 inch DN32 NPT Rate Working Voltage 110-230VAC (Both 50 & 60Hz) Wiring Diagram CR2-02(2 Wires Control, Installed With U.S. 3 Pin Plug) Actuator Rate Power 2 Watt Actuator Rated Torque 3 N.M. Max Working Pressure 145 Psi(1.0 Mpa) Working Current Max 500mA @Running, 0mA@Holding Valve Body Material Brass Actuator Material Engineering Plastics Electrical Cables Length 1.5 Meters (4.92ft) Liquid Temperature 35.6℉-194℉ (2°C-90°C) Can Install To Actuator Directly; ＜2°C or ＞90°C Need To Install Bracket or Heat Radiation Stand Ambient Temperature 5℉-122℉ (-15°C-50°C) Running Time ≤ 5 Sec Per 90° Manual Override No Mechanical Indicator Yes SKU B2-G32N-202CP Application HVAC;Chemical Process;Water Treatment;Solar Hot Water Project;Automatic Control Systems;Efficient Water-Saving, Water Equipment;Small Industrial Equipment For Automatic Control;Replacing Solenoid Valve, Particularly When Solenoid Cannot Work Reliably;Regular Watering The Flowers, Timing Humidifying, Timing of Drainage of Air Compressor; Metal Gears Actuator Features All-Metal Gears, Providing Enhanced Durability And Reliable Performance In Demanding Applications 3 Pin Plug U.S. Standard 3 Pin Plug Installed, Convenient and Quick Installation; Mechanical Indicator Equipped With a Mechanical Indicator For Real-Time Position Feedback.
